25V Conveyor Roller Making Machine 0.9M CO2 Automated Welding Machine
  • name

25V Conveyor Roller Making Machine 0.9M CO2 Automated Welding Machine

MOQ: 1 set
Price: 0.4 - 2.5 USD
Standard Packaging: steel package
Delivery Period: 20 days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 5 SETS per 1 month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
China-techpart
Certification
ISO9001
Model Number
NZC-2X200KR
Material:
Steel
Color:
Blue
Specification:
NZC-2X200KR
Produce Year:
2021
Central Height Of Machine:
900mm
Weight:
2100kg
Size:
3900×950×1300mm
Product Name:
Roller Conveyor Automatic CO2 Auto-Welding Machine NZC-2X200KR
Highlight:

Conveyor roll welding machine

,

25V roll welding machine 0.9M

,

CO2 automated welding machine

Product Description

Roller Conveyor Automatic CO2 Auto-Welding Machine NZC-2X200KR



1.Main purpose and scope of application



Automatic CO2/MAG auto welding machine is adopted with imported programmable controller (PLC) as the core of the control system from Japan instead of traditional relay logic control circuit, which improves equipment reliability scope and work efficiency greatly.

The machine uses CO2, Ar + CO2 gas, Ar + CO2 + O2 etc. as the welding protective gas or uses drug core welding wire + CO2 as protective welding method. With φ1.0～φ1.2mm H08Mn2SiA welding wire ,it can complete the flat ring welding and the angle of inner (outer) girth welding for the hydraulic oil cylinder, fire equipment, belt conveyor roller, automobile drive shaft rotary.

The welding process of the machine is automatic.This type of automatic welding machine is our company’s finalized product with high degree of automation, high efficiency and high welding quality, and it also greatly reduces the labor intensity of welders.

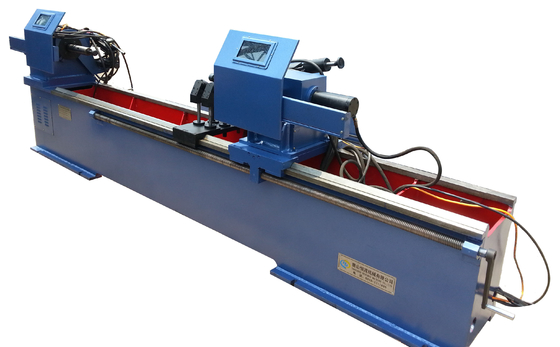

25V Conveyor Roller Making Machine 0.9M CO2 Automated Welding Machine 0



2. Main technical parameter



specification NZC-2×200KR-220 NZC-2×350KR-220 NZC-2×500KR-220
Power input three phase 380V50Hz three phase 380V50Hz Three phase 380V50Hz
Rated duty cycle 60% 50% 50%
Welding current 50~200A 60~350A 60~500A
Output voltage 15~25V 16~36V 16~36V
Rated capacity 7.6kVA×2 18.1kVA×2 18.1kVA×2
Applicable wire diameter Φ0.8~Φ1.0mm Φ1.0~Φ1.2mm Φ1.2~Φ1.6mm
Gas flow 10~25L/min 10~25L/min 10~25L/min
Applicable workpiece length 200~2200mm 200~2200mm 200~2200mm
Applicable workpiece diameter Φ60~Φ250mm Φ60~Φ250mm Φ60~Φ250mm
Spindle speed 1~6r/min 1~6r/min 1~10r/min
Horizontal thrust cylinder travel 50mm 50mm 200mm
Torch feeding cylinder travel 50mm 50mm 50mm
Hydraulic system adjustment range 0~4MPa 0~4MPa 0~4MPa
Torch right-and-left oscillation ±45° ±45° ±45°
Dimension 3900×950×1300mm 3900×950×1300mm 4600×800×1500mm
