4MPa Roll Welder 790mm Auto Press Mounting Machine TYJ-16X220
  • name

4MPa Roll Welder 790mm Auto Press Mounting Machine TYJ-16X220

MOQ: 1 set
Price: 0.4 - 2.5 USD
Standard Packaging: steel package
Delivery Period: 20 days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 5 SETS per 1 month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
China-techpart
Certification
ISO9001
Model Number
TYJ-16X220
Material:
Steel
Color:
Blue
Specification:
TYJ-16X220
Produce Year:
2021
Central Height Of Machine:
900mm
Weight:
2600kg
Size:
4200x820x920mm
Product Name:
Roller Automatic Press Mounting Machine TYJ-16X220
Highlight:

roll welder 790mm

,

4MPa Roller Making Machine

,

Auto Press Mounting Machine TYJ-16X220

Product Description

Roller Automatic Press Mounting Machine TYJ-16X220

1. The application and characteristics of the equipment

·This product is a belt conveyor roller semi-automatic assembly equipment which with full hydraulic pressure, it’s applicable to the current             domestic production of various kinds roller’s installation (e.g., cast iron bearing housings, stamping welding bearing housing).



·When working, artificial feeding, double head pressing installation, it could install the cast iron bearing housing, bearing, seal, dust cover many times. This machine is reliable and practical, high efficiency, suitable for mass production of roller.



· 2. Application conditions

· This machine can be used within the situation of no dust and all kinds of corrosive medium. Processed tubes must be removed floating rust.

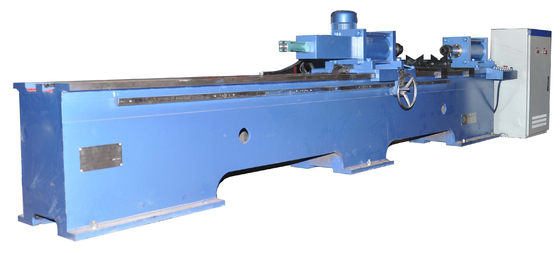

4MPa Roll Welder 790mm Auto Press Mounting Machine TYJ-16X220 0



3. Main specification and technical parameter



Specification TYJ-16×220 TYJ-22×260
Spindle center height of machine 790mm 790mm
Installed roller diameter Φ89~Φ159 Φ89~Φ219
Installed roller length 200~2200mm 200~2600mm
Hydraulic system pressure 1.5~4MPa 1.5~4MPa
The biggest force for installation 6000Kgf 6000Kgf
Error for the two installing principal axis and axis inclination ≤0.1mm ≤0.1mm
Hydraulic system of the motor 5.5 kW 5.5 kW
Size of the machine 4200×820×920mm 4600×820×920mm
