Shaft Facing Center Hole Drilling Machine QXZ-4.5×230 Stepless Adjustable
  • name

Shaft Facing Center Hole Drilling Machine QXZ-4.5×230 Stepless Adjustable

MOQ: 1 set
Price: 0.4 - 2.5 USD
Standard Packaging: steel package
Delivery Period: 20 days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 5 SETS per 1 month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
China-techpart
Certification
ISO9001
Model Number
QXZ-4.5×230
Material:
Steel
Color:
Blue
Specification:
QXZ-4.5×230
Produce Year:
2021
Central Height Of Machine:
900mm
Weight:
2600kg
Size:
4050×930×1400mm
Product Name:
Roller Automatic Press Mounting Machine TYJ-16X220
Highlight:

Shaft Facing Center hole drilling machine

,

4.5×230 hole drilling machine

,

QXZ-4.5×230

Product Description

Shaft Facing And Center Hole Drilling Machine QXZ-4.5×230



1. Main uses and scope of application



The product is a special equipment for centering chamfer on both ends of the belt conveyor roller milling face. This equipment is development after pipe chamfer cutting machine, hole turning machine and welding machine for conveyor industries.



The machine adopts a v-shaped block, using cylindrical positioning, hydraulic clamping, double end processing at the same time, and completes axial positioning, surfacing cutting, center hole processing and shaft end chamfer process. It’s positioning accurately and clamping reliable, so it has the character of easy handling and operation, good precision, high production efficiency, etc.



The control system adopts Toshiba programmable controller (PC) and domestic advanced non-contact proximity switch, and the superposition valve system adopts domestic advanced hydraulic, so it’s with quick and accurate action, stable and reliable performance, low failure rate, to further ensure the roll shaft end face, center hole machining to work with high quality and high efficiency

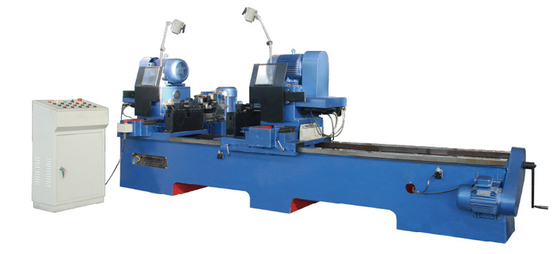

Shaft Facing Center Hole Drilling Machine QXZ-4.5×230 Stepless Adjustable 0



2. Main specification and technical parameter



Specification QXZ-4.5×230 QXZ-4.5×270
Central height of machine 900mm 900mm
The milling spindle speed 635r/min 635r/min
Amount of feed Stepless Adjustable Stepless Adjustable
Diameter of workpiece Φ20~Φ50mm Φ20~Φ50mm
Length of workpiece 300~2300mm 300~2700mm
Drilling spindle speed 730r/min 730r/min
hydraulic slide stroke 220mm 220mm
Machiningprecision (alignment) IT9 IT9
Size 4050×930×1400mm 4550×930×1400mm
