Steel Pipe Automatic 900mm Chamfer Cutting Machine QZ11-16X220
  • name

Steel Pipe Automatic 900mm Chamfer Cutting Machine QZ11-16X220

MOQ: 1 set
Price: 0.4 - 2.5 USD
Standard Packaging: steel package
Delivery Period: 20 days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 5 SETS per 1 month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
China-techpart
Certification
ISO9001
Model Number
QZ11-16X220
Material:
Steel
Color:
Blue
Specification:
QZ11-16X2200
Produce Year:
2021
Central Height Of Machine:
900mm
Weight:
5000kg
Size:
19090x1640x1210mm
Product Name:
Steel Pipe Automatic Chamfering Cutting Machine QZ11-16X220
Highlight:

Steel Pipe Chamfer Cutting Machine

,

900mm Chamfer Cutting Machine

,

QZ11-16X220

Product Description

Steel Pipe Automatic Chamfering Cutting Machine QZ11-16X220

1. Main purpose and scope of application

The device is belt conveyor roller chamfer on both ends of the steel pipe cutting, which is a completion of special equipment, and does not need auxiliary processing after chamfer cutting. Its precision can satisfy the requirements of the roller tube being applicable to domestic and foreign production of belt conveyor roller steel pipe cutting processing. In addition to the feeding, the process includes feeding, positioning, clamping, chamfering, and cutting, which is automatically on the device. The adjustment is simple, reliable, high degree of automation, using hard alloy cutting machine,and high work efficiency. The equipment adopts the advanced programmable controller (PLC) as core of control system imported from Japan . It uses advanced non-contact switch with accurate and reliable action. It is applicable to bulk specialized production.



2. Application conditions

This machine can be used in the situation with all kinds of aggressive medium and no dust. The processed pipes should be removed floating rust.

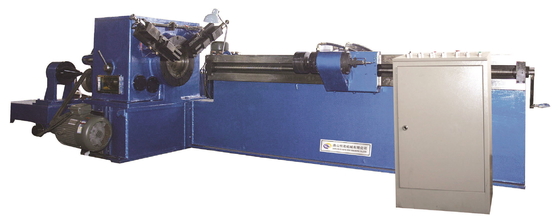

Steel Pipe Automatic 900mm Chamfer Cutting Machine QZ11-16X220 0



3. Main specification and technical parameter



(1)main parameters

Specifications QZ11-16×220 QZ11-22×260
Spindle center height of machine tool 800mm 800mm
Hydraulic system working pressure 1.5-4MPa 1.5-4MPa
Rotate speed of Spindle 150,220 r/min 100,160,250 r/min
Feeding speed Hydraulic stepless adjustable Hydraulic stepless adjustable
Speed of working 0-8m/min Hydraulic stepless adjustable 0-8m/min Hydraulic stepless adjustable
Maximum feeding length 12000 mm adjusting according situation 12000 mm adjusting according situation
Main driving motor 15 kW 22 kW
Hydraulic system of the motor 5.5 kW 5.5 kW
Feeding mechanism Hydraulic motor 150NM Spindle wheel swinging reducer 2.2kw
Cut off the steel pipe length 200-2200 mm 200-2600 mm
Pipe diameter of cutting Φ89-Φ159 mm Φ89-Φ219 mm
Equipment size 19090×1640×1210 mm 20310×2420×1250 mm

(2) working accuracy

Specification QZ11-16×220 QZ11-22×260
Cutting length of the repeat precision ≤0.5 mm ≤0.5 mm
Cut off steel tube two end face parallelism ≤0.4 mm ≤0.4 mm
Cut off chamfer surface roughness 6.3~12.5μm 6.3~12.5μm
