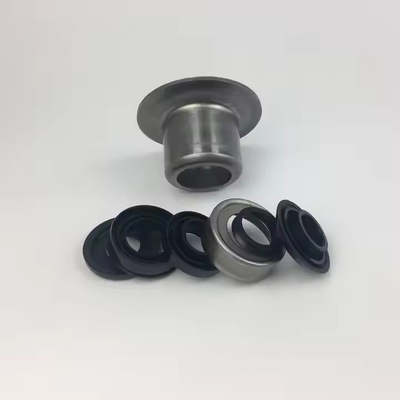

2mm 2.5mm Conveyor Roller Assembly Press Housing Roller Bearing Ozone Resistance

Roller Conveyor Roller Assembly Press Housing Roller Bearing Seat

Parameter:

1). Bearing size: 6204, 6205, 6305, 6206, 6306, 6307, 6308

2). Bearing Housing type: pressed housing, cast iron bearing housing, polymer housing

3). Seal: Multiple labyrinth seal, Waterproof,dust proof,corrosion resistance

4). Standard: ISO,MA

5). Production capacity: 2000pcs/day.

Main Feature of conveyor idler roller bearing housing and labyrinth seal bearing:
1) Solid design, suitable for heavy lifting.
2) The bearing housing and steel tube are assembled and welded with a concentric automatic.
3) Cutting of the steel tube and bearing is performed with the use of a digital auto device/machine/equipment..
4) The bearing's end is constructed to ensure that the roller shaft and bearing can be firmly connected.
5) Fabrication of the roller is effected by an auto device and 100% tested for its concentricity.
6) Roller and supporting components / materials are manufactured to DIN/ AFNOR/ FEM/ ASTM/ CEMA standard.
7) The casing is manufactured with highly composite, anti corrosive alloy.
8) The roller is lubricated and free from maintenance.
9) Woring life expectancy is up to 30,000 hours or more, depending on usage.
10)Vacuum sealed which has withstood anti water, salt, snuff, sandstone and dust proof experiments

Product features

idle conveyor belt Roller type: TK, TKII, DTII,TKIII,TURNUP

idle roller Bearing Type: 6203,6204,6205,6206,6305,6306,6307,6308,6309, 6310.etc.

idle conveyor Roller Diameter:63,76,89,103,108,114,127,133,159,165,176,194, 219,etc.

Service

* From mold design to manufacturing.

FAQ

A.How could I get a sample? Before we received the first order, please afford the sample cost and express fee.
