Turn Back 4mm Steel Bearing Housing Conveyors Roller Housing Parts Low Noise

Turn Back Steel Bearing Housing Conveyors Rollers Parts For Belt Conveyor Idler Roller

Specification:

1). Bearing size: 6204, 6205, 6305, 6206, 6306, 6307, 6308

2). Bearing Housing type: pressed housing, cast iron bearing housing, polymer housing

3). Seal: Multiple labyrinth seal, Waterproof,dust proof,corrosion resistance

4). Standard: ISO,MA

5). Production capacity: 2000pcs/day.

Main Feature of conveyor idler roller bearing housing and labyrinth seal bearing:
1) Solid design, suitable for heavy lifting.
2) The bearing housing and steel tube are assembled and welded with a concentric automatic.
3) Cutting of the steel tube and bearing is performed with the use of a digital auto device/machine/equipment..
4) The bearing's end is constructed to ensure that the roller shaft and bearing can be firmly connected.
5) Fabrication of the roller is effected by an auto device and 100% tested for its concentricity.
6) Roller and supporting components / materials are manufactured to DIN/ AFNOR/ FEM/ ASTM/ CEMA standard.
7) The casing is manufactured with highly composite, anti corrosive alloy.
8) The roller is lubricated and free from maintenance.
9) Woring life expectancy is up to 30,000 hours or more, depending on usage.
10)Vacuum sealed which has withstood anti water, salt, snuff, sandstone and dust proof experiments

Product features

idle conveyor belt Roller type: TK, TKII, DTII,TKIII,TURNUP

idle roller Bearing Type: 6203,6204,6205,6206,6305,6306,6307,6308,6309, 6310.etc.

idle conveyor Roller Diameter:63,76,89,103,108,114,127,133,159,165,176,194, 219,etc.

Material

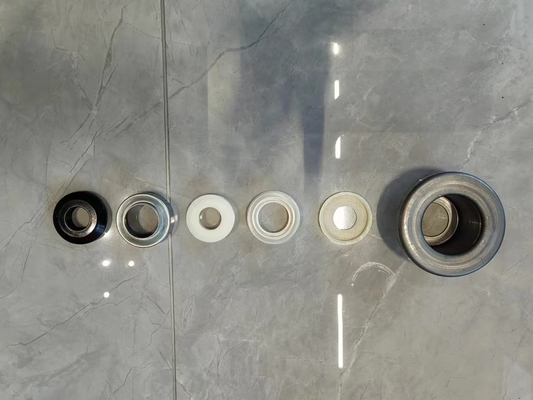

Full Set of the TK Series Bearing housing and seals Including:

Materials :

♦ Bearing Housing: SPHC

♦ Sealing Ring: Nylon PA6

♦ Labyrinth Seal: POM

♦ Outer Cap: SPCC

♦ Dust Cover: Nylon PA6

FAQ

Q1. Can I have a sample order for conveyor roller bearing housing?

Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

1) 2--3 days for sample 2) 20--30 days for mass production. If urgent,we have green channel.

Q3. Do you have any MOQ limit for conveyor roller bearing housing order?

Low MOQ, 1pc for sample checking is available

Q4. Is it OK to print my logo on conveyor roller bearing housing product?

Yes. Please inform us your logo or design before mass production
