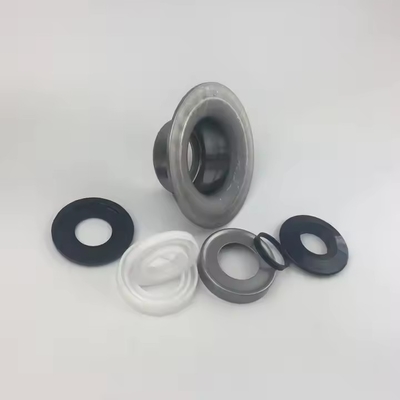

TKIII Steel Carrying Roller Bearing Housing With Rubber Sealing Ring

TKIII Steel Carrying Roller Bearing Housing  With Rubber Sealing Ring

Product features

Conveyor belt Roller type: TK, TKII, DTII,TKIII,TURNUP

Roller Bearing Type: 6203,6204,6205,6206,6305,6306,6307,6308,6309, 6310.etc.

Conveyor Roller Diameter:63,76,89,103,108,114,127,133,159,165,176,194, 219,etc

Specification:

Main Feature of conveyor idler roller bearing housing and labyrinth seal bearing:
1) Solid design, suitable for heavy lifting.
2) The bearing housing and steel tube are assembled and welded with a concentric automatic.
3) Cutting of the steel tube and bearing is performed with the use of a digital auto device/machine/equipment..
4) The bearing's end is constructed to ensure that the roller shaft and bearing can be firmly connected.
5) Fabrication of the roller is effected by an auto device and 100% tested for its concentricity.
6) Roller and supporting components / materials are manufactured to DIN/ AFNOR/ FEM/ ASTM/ CEMA standard.
7) The casing is manufactured with highly composite, anti corrosive alloy.
8) The roller is lubricated and free from maintenance.
9) Woring life expectancy is up to 30,000 hours or more, depending on usage.
10)Vacuum sealed which has withstood anti water, salt, snuff, sandstone and dust proof experiments

Material

Full Set of the TK Series Bearing housing and seals Including:

Materials :

♦ Bearing Housing: SPHC

♦ Sealing Ring: Nylon PA6

♦ Labyrinth Seal: POM

♦ Outer Cap: SPCC

♦ Dust Cover: Nylon PA6
