High Precision Bearing Seat Shaft Bearing Housing For Idler Roller

MOQ:	As your request
Price:	0.4 - 2.5 USD
Standard Packaging:	WOODEN CASE
Delivery Period:	10-15 WORK DAYS
Payment Method:	L/C,D/A,D/P,T/T,Western Union

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

ODM/OEM

Model Number

TK6205-102(97)-2.5

Name:

Bearing Housing

Material:

Steel

Thickness:

2.5/3mm

Sample:

Free Provide

Shaft Diameter:

25 Mm Or Customize

Highlight:

High Precision Bearing Housing

102 mm Bearing Housing

Shaft Bearing Housing For Idler Roller

Product Description

TK6205-102 Precision High Bearing Seat Shaft Bearing Housing For Idler Bearing

Available product range

6203/6204/6205/6206/6207/6208/6305/6306/6307/6308/6309/6310/6312/customize

Idle conveyor Roller Diameter:63,76,89,103,108,114,127,133,159,165,176,194, 219,etc.

Idle conveyor belt Roller type: TK, TKII, DTII,TKIII,TURNUP

Specification:

Bearing	Shaft Diameter	Pipe O.D.	Bearing Housing O.D.	Upper Bore Diameter	Bottom Bore Diameter	Bearing O.D.	Depth	Thickness
6204	20	63	59.5	47.1	35	47	42.5	2.5
		76	72					2.5
		89	83/84/85					2.5
		102	97					2.5/3.0
		108	103					2.5/3.0
		114	109/110					2.5/3.0
		127	121/122					2.5/3.0
		133	127/128					2.5/3.0
		140	134/135/136					2.5/3.0
		152	146/147					2.5/3.0
		159	152/153					2.5/3.0
6205	25	76	72	52.1	40	52	45	2.5
		89	83/84/85					2.5
		102	97					2.5/3.0
		108	103					2.5/3.0
		114	109/110					2.5/3.0
		127	121/122					2.5/3.0
		133	127/128					2.5/3.0
		140	134/135/136					2.5/3.0
		152	146/147					2.5/3.0
		159	152/153					2.5/3.0

Main Feature of conveyor idler roller bearing housing and labyrinth seal bearing:
1) Solid design, suitable for heavy lifting.
2) The bearing housing and steel tube are assembled and welded with a concentric automatic.
3) Cutting of the steel tube and bearing is performed with the use of a digital auto device/machine/equipment..
4) The bearing's end is constructed to ensure that the roller shaft and bearing can be firmly connected.
5) Fabrication of the roller is effected by an auto device and 100% tested for its concentricity.
6) Roller and supporting components / materials are manufactured to DIN/ AFNOR/ FEM/ ASTM/ CEMA standard.
7) The casing is manufactured with highly composite, anti corrosive alloy.
8) The roller is lubricated and free from maintenance.
9) Woring life expectancy is up to 30,000 hours or more, depending on usage.
10)Vacuum sealed which has withstood anti water, salt, snuff, sandstone and dust proof experiments

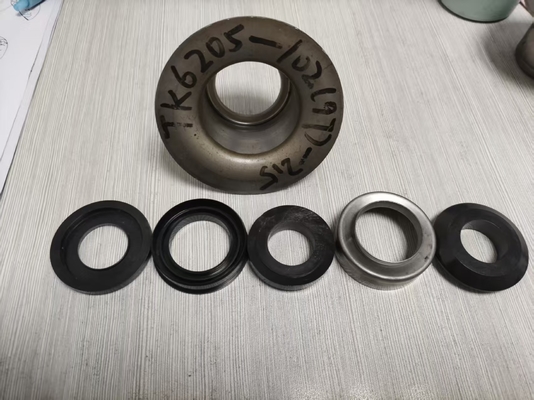

High Precision Bearing Seat Shaft Bearing Housing For Idler Roller 0

Material

Full Set of the TK Series Bearing housing and seals Including:

Materials :

♦ Bearing Housing: SPHC

♦ Sealing Ring: Nylon PA6

♦ Labyrinth Seal: POM

♦ Outer Cap: SPCC

♦ Dust Cover: Nylon PA6
