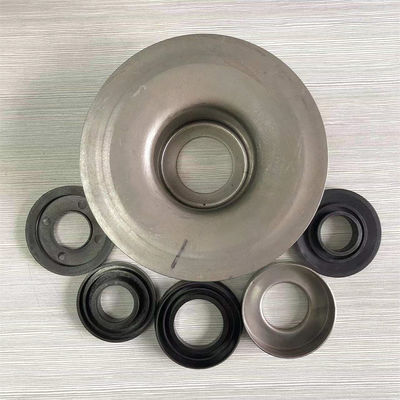

Hot Pressed Iron Material TK Roller Bearing Housing With Plastic Sealing Component

Bearing housing

1. High precision High gloss Low tolerance

2. 100% good raw material from Shanghai Baoshan Iron&Steel

3. No scratch and burrs

4. Accept customize and lettering

Bearing seal kits

1. All popular structures available

2. Capacity to provide plastic/metal/rubber seals

3. Low tolerance and good quality

4. Customize the material, shape and lettering

Specification:

China-Techpart Precision Technology Co., Ltd. Add.: No.1,Longmenling Road,Xinzhan High-Tech Industry Development Zone, Hefei, Anhui, China
TK Bearing Housings
Unit: mm
Bearing	Pipe O.D.	Shaft Diameter	Bearing Housing O.D.	Upper Bore Diameter	Bottom Bore Diameter	Bearing O.D.	Depth	Thickness	Bearing	Pipe O.D.	Shaft Dm	Bearing Housing O.D.	Upper Bore Diameter	Bottom Bore Diameter	Bearing O.D.	Depth	Thickness
6204	63	20	59.5	47.1	35	47	42.5	2.5	6306	114	30	109/110	72.1	45	72	49.3	3.0
	76		72					2.5		127		121/122					3.0/4.0
	89		83/84/85					2.5		133		127/128					3.0/4.0
	102		97					2.5/3.0		140		134/135/136					3.0/4.0
	108		103					2.5/3.0		152		146/147					3.0/4.0
	114		109/110					2.5/3.0		159		152/153					3.0/4.0/5.0
	127		121/122					2.5/3.0		165		160					3.0/4.0/5.0
	133		127/128					2.5/3.0		168		161					3.0/4.0/5.0
	140		134/135/136					2.5/3.0		176		170					3.0/4.0/5.0
	152		146/147					2.5/3.0		178		172					3.0/4.0/5.0
	159		152/153					2.5/3.0		194		188					3.0/4.0/5.0
6205	76	25	72	52.1	40	52	45	2.5	6307	108	35	103	80.1	55	80	53	4.0
	89		83/84/85					2.5		114		109/110					4.0
	102		97					2.5/3.0		127		121/122					4.0
	108		103					2.5/3.0		133		127/128					4.0
	114		109/110					2.5/3.0		140		134/135/136					4.0
	127		121/122					2.5/3.0		152		146/147					4.0
	133		127/128					2.5/3.0		159		152/153					4.0
	140		134/135/136					2.5/3.0		165		160					4.0/5.0
	152		146/147					2.5/3.0		168		161					4.0/5.0
	159		152/153					2.5/3.0		176		170					4.0/5.0
6206	89	30	83/84/85	62.1	40	62	45	2.5/3.0		178		172					4.0/5.0
	102		97					2.5/3.0		194		188					4.0/5.0
	108		103					2.5/3.0		219		213					4.0/5.0
	114		109/110					3.0/4.0	6308	108	40	103	90.1	65	90	55	4.0
	127		121/122					3.0/4.0		127		121/122					4.0
	133		127/128					3.0/4.0		133		127/128					4.0
	140		134/135/136					3.0/4.0		140		134/135/136					4.0
	152		146/147					3.0/4.0		152		146/147					4.0
	159		152/153					3.0/4.0		159		152/153					4.0
	165		160					3.0/4.0		165		160					4.0/5.0
	168		161					3.0/4.0		168		161					4.0/5.0
	176		170					3.0/4.0		176		170					4.0/5.0
	178		172					3.0/4.0		178		172					4.0/5.0
	194		188					3.0/4.0		194		188					4.0/5.0
6305	89	25	83/84/85	62.1	40	62	45	2.5/3.0		219		213					4.0/5.0
	102		97					2.5/3.0	6309	133	45	127/128	100.1	65	100	57	5.0
	108		103					2.5/3.0		140		134/135/136					5.0
	114		109/110					3.0/4.0		152		146/147					5.0
	127		121/122					3.0/4.0		159		152/153					5.0
	133		127/128					3.0/4.0		165		160					5.0
	140		134/135/136					3.0/4.0		168		161					5.0
	152		146/147					3.0/4.0		176		170					5.0
	159		152/153					3.0/4.0/5.0		178		172					5.0
	165		160					3.0/4.0/5.0		194		188					5.0
	168		161					3.0/4.0/5.0		219		213					5.0
	176		170					3.0/4.0/5.0	6310	159	50	153	110.1	70	110	59	5.0
	178		172					3.0/4.0/5.0		165		160					5.0
	194		188					3.0/4.0/5.0		168		161					5.0
6306	89	30	83/84/85	72.1	46	72	49.3	3.0		176		170					5.0
	102		97					3.0		178		172					5.0
	108		103					3.0		194		188					5.0
										219		213					5.0

1). Bearing size: 6104, 6204, 6205, 6305, 6206, 6306, 6307, 6308, 6309, 6310

2). Bearing Housing type: pressed housing, cast iron bearing housing, polymer housing

3). Seal: Multiple labyrinth seal, Waterproof,dust proof,corrosion resistance

4). Standard: ISO,MA

5). Production capacity: 2000pcs/day.

1. Product features

idle conveyor belt Roller type: TK, TKII, DTII,TKIII,TURNUP

idle roller Bearing Type: 6203,6204,6205,6206,6305,6306,6307,6308,6309, 6310.etc.

idle conveyor Roller Diameter:63,76,89,103,108,114,127,133,159,165,176,194, 219,etc.

2. Material

Full Set of the TK Series Bearing housing and seals including materials :

♦ Bearing Housing: SPHC

♦ Sealing Ring: Nylon PA6

♦ Labyrinth Seal: POM

♦ Outer Cap: SPCC

♦ Dust Cover: Nylon PA6

3. Our Advantage:

1. The life time: more than 30000 hours

2. Samples for testing are available.

3. Minimum revoiving resistance

4. Small maintain work

5. High load capability

6. The more relaxed payment terms

7. Dust proof & water proof

8. Advanced stamping technology for enhanced structural perfomance

9. Upgraded sealing system for all-environment adaptability

4. How to get sample

our ssamples are all free, if you confirm the type and size, just tell us, we prepare samples and send to you, but you pay the

logistic cost

5. How to get price

1. idle conveyor Roller diameter

2. idle roller Bearing type

3. idle Bearing end cap diameter

4. idle housing Thickness Please confirm type and size ,And then we can give you a quotation for you.

6. Our Service

1. We can press your logo onto your goods.

2. We can produce the non-standard housing according to your drawing.

3. We can offer the samples and drawings for your reference.

4. We can offer you the most competitive price according to your situation.

5. We promise not disclose your secret documents or information to the third one definitely.

7. Our Strengths

1. We are the professional manufacturer with more than 7 years experiences

2. The professional equipment and teams tested the goods strictly before delivery, you can trust the goods quality.

3. Choose us will avoid many pitfalls of international transactions.

4. Our products has been exported to Russia, south Africa,and the US, Korea.customer has built long term business relationship with us.
