Belt Conveyor Small Roller Bearing House And Dust Proof Labyrinth Seals

MOQ:	As your request
Price:	0.4 - 2.5 USD
Standard Packaging:	WOODEN CASE
Delivery Period:	10-15DAYS
Payment Method:	L/C,Western Union,T/T,D/A,D/P

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Model Number

TK6204-102

Material:

Sphc Steel,

Application:

Mining Conveyor Roller

Type:

TK6204-102

Name:

TK Bearing Housing

Highlight:

belt conveyor bearing housing

belt conveyor housing roller bearing

Product Description

Belt Conveyor Small Roller Bearing House and Dust Proof Labyrinth Seals

1. Bearing: 6204

2. Pipe OD: 102mm

3. Thickness:2, 2.5 or 3 mm

Specification:

Bearing	Shaft Diameter	Pipe O.D.	Bearing Housing O.D.	Upper Bore Diameter	Bottom Bore Diameter	Bearing O.D.	Depth	Thickness
6204	20	63	59.5	47.1	35	47	42.5	2.5
		76	72					2.5
		89	83/84/85					2.5
		102	97					2.5/3.0
		108	103					2.5/3.0
		114	109/110					2.5/3.0
		127	121/122					2.5/3.0
		133	127/128					2.5/3.0
		140	134/135/136					2.5/3.0
		152	146/147					2.5/3.0
		159	152/153					2.5/3.0
6205	25	76	72	52.1	40	52	45	2.5
		89	83/84/85					2.5
		102	97					2.5/3.0
		108	103					2.5/3.0
		114	109/110					2.5/3.0
		127	121/122					2.5/3.0
		133	127/128					2.5/3.0
		140	134/135/136					2.5/3.0
		152	146/147					2.5/3.0
		159	152/153					2.5/3.0

Main Feature of conveyor idler roller bearing housing and labyrinth seal bearing:
1) Solid design, suitable for heavy lifting.
2) The bearing housing and steel tube are assembled and welded with a concentric automatic.
3) Cutting of the steel tube and bearing is performed with the use of a digital auto device/machine/equipment..
4) The bearing's end is constructed to ensure that the roller shaft and bearing can be firmly connected.
5) Fabrication of the roller is effected by an auto device and 100% tested for its concentricity.
6) Roller and supporting components / materials are manufactured to DIN/ AFNOR/ FEM/ ASTM/ CEMA standard.
7) The casing is manufactured with highly composite, anti corrosive alloy.
8) The roller is lubricated and free from maintenance.

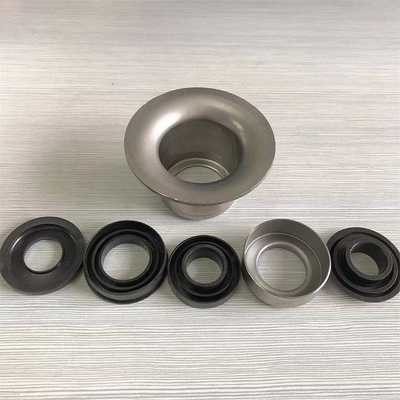

Belt Conveyor Small Roller Bearing House And Dust Proof Labyrinth Seals 0

2. Product features

idle conveyor belt Roller type: TK, TKII, DTII,TKIII,TURNUP

idle roller Bearing Type: 6203,6204,6205,6206,6305,6306,6307,6308,6309, 6310.etc.

idle conveyor Roller Diameter:63,76,89,103,108,114,127,133,159,165,176,194, 219,etc.

3. Material

Full Set of the TK Series Bearing housing and seals Including:

Materials :

♦ Bearing Housing: SPHC

♦ Sealing Ring: Nylon PA6

♦ Labyrinth Seal: POM

♦ Outer Cap: SPCC

♦ Dust Cover: Nylon PA6

4. How to get sample

our ssamples are all free, if you confirm the type and size, just tell us, we prepare samples and send to you, but you pay the logistic cost

5. How to get price

1. idle conveyor Roller diameter

2. idle roller Bearing type

3. idle Bearing end cap diameter

4. idle housing Thickness

Please confirm type and size ,And then we can give you a quotation for you.

6. Our Service

1. We can press your logo onto your goods.

2. We can produce the non-standard housing according to your drawing.

3. We can offer the samples and drawings for your reference.

4. We can offer you the most competitive price according to your situation.

5. We promise not disclose your secret documents or information to the third one definitely.

8. Package

Belt Conveyor Small Roller Bearing House And Dust Proof Labyrinth Seals 1

9. Our Factory

Belt Conveyor Small Roller Bearing House And Dust Proof Labyrinth Seals 2

FAQ

1. How can I get samples?

·We can supply some free samples (total value under 10 US dollars) if you have a DHL, TNT, UPS or FedEx account or other courier freight collectable account and agree to pay the courier freight.

·If the total value of samples is more than 10 US dollars, we'd like to ask you to pay for the samples and courier freight, we will send the samples to you after receipt of your payment.

·If you don't have courier account, you can send your courier to collect samples from our company, or send us the samples charge together with the courier cost by T/T.

·The charge both sample and courier cost will be return you once the mass order placed.

2. How much the courier freight will be charged for the samples?

·Courier freight depends on the quantity, weight, and carton size and your area. Our courier agent TNT and DHL will be save you 20% total courier charges because we have a long-term agreement. However, you also can use your courier company to pick up.

3. How can I get your quotation sheet?

· Please send us your inquiry with our products model number by email or fax, we will offer you our price list, offer sheet and order information within one working day.

4. What’s your usual payment term for orders?

·T/T30% as the deposit, and T/T 70% balance paid before loading.

5. What’s the warranty of your products?

·Usually we guarantee one year after delivery date, but depending on the specified product.
