Belt Conveyor Idler Roller Bearing Housing With Stamping Process

MOQ:	1000 sets
Price:	0.4 - 2.5 USD
Standard Packaging:	Standard export packing
Delivery Period:	15-25 working days
Payment Method:	L/C, D/A, D/P, T/T, Western Union
Supply Capacity:	18000 sets per week

Details Information

Product Description

Detail Information

Place of Origin

Anhui of China

Brand Name

China-Techpart

Certification

ISO9001-2008

Model Number

TK6306-159(153)

Material:

Used For:

Mining, Port, Cement, Power Plant And Any Other Bulk Material Handling Project.

Quality:

Low Tolerance

Bearing Type:

Roller Diameter:

159mm

Flange Diameter:

153mm

Deepness:

49.3mm

Thickness:

3mm / 4mm /5mm

Highlight:

Belt Conveyor Idler Roller Bearing Housing

Stamping Idler Roller Bearing Housing

Stamping Conveyor Idler Bearing Housing

Product Description

Belt Conveyor Idler Roller Bearing Housing With Stamping Process TK6306-159(153)

Bearing	Pipe Dia (mm)	Shaft (mm)	Flange (mm)	Caliber (mm)	Hole Dia (mm)	Bearing Seat Dia (mm)	Deepness(mm)	Thickness(mm)
6306	89	30	83/84/85	72.1	45	72	49.3	3
	102		97					3
	108		103					3
	114		109/110					3
	127		121/122					3.0/4.0
	133		127/128					3.0/4.0
	140		134/135/136					3.0/4.0
	152		146/147					3.0/4.0
	159		152/153					3.0/4.0/5.0
	165		160					3.0/4.0/5.0
	168		161					3.0/4.0/5.0
	176		170					3.0/4.0/5.0
	178		172					3.0/4.0/5.0
	194		188					3.0/4.0/5.0

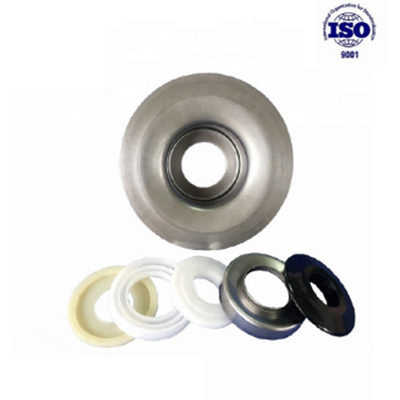

Material for Each Part:

1* Bearing housing ——SPHC
1* Inner seal ring ——PA6
1* Female labyrinth seal——POM
1* Male labyrinth seal——POM
1* Metal cover seal——SPCC
1* Protective cover——PA6

Bearing housing/end cap only or seals only can be ordered!

Physical Products Show:

Our roller bearing housing and relative seals have the advanges like high precision, good gloss,Low tolerance, good quality without stretching scars or burrs. Steel materials are from Shanghai Baosteel Group, which is famous for steel making in China.

Belt Conveyor Idler Roller Bearing Housing With Stamping Process 0

Belt Conveyor Idler Roller Bearing Housing With Stamping Process 1

Factory Show:

We work on excellent bearing housing & seals profducing & exporting for over 15 years,

and have got ISO9001-2008 quality management system certification.

We own 4 advanced production lines which make us the largest and most professional

bearing housing maker in China.

Belt Conveyor Idler Roller Bearing Housing With Stamping Process 2

We Offer Sample Service to Global Market :

Our business has been expanded to over 30 countries over the world such as Russia,

USA, Netherlands,Chile, Mexico, Colombia, Thailand, Indonesia.,etc.

Clients all over the world could enjoy free sample service and you only need cover the postage.

Welcome to visit our factory, and we will provide you with our best products and service.

Belt Conveyor Idler Roller Bearing Housing With Stamping Process 3
