Pressed Bearing Cap Idler Roller Housing TK6204-63 For Belt Conveyor
  • name

Pressed Bearing Cap Idler Roller Housing TK6204-63 For Belt Conveyor

MOQ: 500 sets
Price: 0.4 - 2.5 USD
Standard Packaging: Standard export packing
Delivery Period: 18-25 work days
Payment Method: L/C, D/A, D/P, T/T, Western Union
Supply Capacity: 18000 sets per week
Details Information
Product Description
Detail Information
Place of Origin
Anhui of China
Brand Name
China-Techpart
Certification
ISO9001-2008
Model Number
TK6204-63
Material:
SPHC(Pickled Steel)
Applicable Industries:
Building Material Shops, Manufacturing Plant, Mining Etc
Quality:
Low Tolerance With High Precision
Bearing Type:
6204
Roller Diameter:
63mm
Flange Diameter:
59.5mm
Deepness:
42.5mm
Bottom Bore Diameter:
35mm
Highlight:

Pressed Bearing Cap Idler Roller Housing

,

63mm Idler Roller Housing

,

TK6204-63

Product Description

Belt Conveyor Idler Roller Housing TK6204-63 Pressed Bearing Cap





Detailed specification:



Bearing Pipe Dia (mm) Shaft (mm) Flange (mm) Caliber (mm) Hole Dia (mm) Bearing Seat Dia (mm) Deepness(mm) Thickness(mm)
6204 63 20 59.5 47.1 35 47 42.5 2.5
76 72 2.5
89 83/84/85 2.5
102 97 2.5/3.0
108 103 2.5/3.0
114 109/110 2.5/3.0
127 121/122 2.5/3.0
133 127/128 2.5/3.0
140 134/135/136 2.5/3.0
152 146/147 2.5/3.0
159 152/153 2.5/3.0
6205 76 25 72 52.1 40 52 45 2.5
89 83/84/85 2.5
102 97 2.5/3.0
108 103 2.5/3.0
114 109/110 2.5/3.0
127 121/122 2.5/3.0
133 127/128 2.5/3.0
140 134/135/136 2.5/3.0
152 146/147 2.5/3.0
159 152/153 2.5/3.0

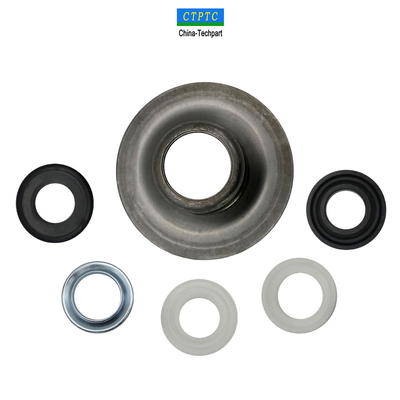

Material for each part :



Bearing Housing: Carbon steel SPHC from Baosteel Group

Inner Sealing Ring: Nylon PA6

Male/Female Labyrinth Seal: POM

Cover Cap: Carbon Steel SPCC

Protective Shield: Nylon PA6



Product Show:



Our bearing hosuing products could not only be supplied by full combination set but also by any spare part.

The quality is reliable. You deserve it if you need !

Pressed Bearing Cap Idler Roller Housing TK6204-63 For Belt Conveyor 0



Factory Show:



Our factory are professional in bearing housing field for more than 15 years,

and passed ISO9001-2008 quality management system.

Pressed Bearing Cap Idler Roller Housing TK6204-63 For Belt Conveyor 1



Packing:



We usually use export standard seaworthy packing like wooden cases with some measures to protect goods from getting wet.

Pressed Bearing Cap Idler Roller Housing TK6204-63 For Belt Conveyor 2





Customer Visiting:



We have wide business with over 30 countries over the world such as Russia, USA, Netherlands,

Chile, Mexico, Colombia, Thailand, Indonesia.,etc.

Pressed Bearing Cap Idler Roller Housing TK6204-63 For Belt Conveyor 3

Welcome to our company and to know more about us if you are intersted in our products.





Advantages for our bearing housing:



1. Material:Our raw material is SPHC from Shanghai BaoSteel Company, its

precision tolerance reaches M7.



2. Inner sealing and protective is made from PA6.

It has strong wear and abrasion resistance and high lubricity



3. Female and male labyrinth are made from POM.

They have strong wear and abrasion resistance ,high lubricity and high strength.



4. The material of cover cap is SPCC.

Its yield strength and tensile strength is excellent.


Tags:

Stamped Bearing housing,

Conveyor Roller Bearing,

Bearing End Cap
