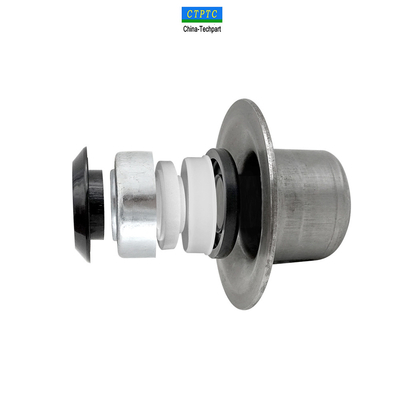

Belt Conveyor Idler Roller Housing TK6204-133 Pressed Bearing Cap
  • name

Belt Conveyor Idler Roller Housing TK6204-133 Pressed Bearing Cap

MOQ: 500 sets
Price: 0.4 - 2.5 USD
Standard Packaging: Standard export packing
Delivery Period: 18-25 work days
Payment Method: L/C, D/A, D/P, T/T, Western Union
Supply Capacity: 18000 sets per week
Details Information
Product Description
Detail Information
Place of Origin
Anhui of China
Brand Name
China-Techpart
Certification
ISO9001-2008
Model Number
TK6204-133
Material:
SPHC(Pickled Steel)
Applicable Industries:
Building Material Shops, Manufacturing Plant, Mining Etc
Quality:
Low Tolerance With High Precision
Bearing Type:
6204
Roller Diameter:
133mm
Flange Diameter:
128mm
Deepness:
42.5mm
Bottom Bore Diameter:
35mm
Highlight:

Belt Conveyor Idler Roller Housing

,

133mm Idler Roller Housing

,

TK6204-133

Product Description

Belt Conveyor Idler Roller Housing TK6204-133 Pressed Bearing Cap





Detailed specification:



Bearing Pipe Dia (mm) Shaft (mm) Flange (mm) Caliber (mm) Hole Dia (mm) Bearing Seat Dia (mm) Deepness(mm) Thickness(mm)
6204 63 20 59.5 47.1 35 47 42.5 2.5
76 72 2.5
89 83/84/85 2.5
102 97 2.5/3.0
108 103 2.5/3.0
114 109/110 2.5/3.0
127 121/122 2.5/3.0
133 127/128 2.5/3.0
140 134/135/136 2.5/3.0
152 146/147 2.5/3.0
159 152/153 2.5/3.0
6205 76 25 72 52.1 40 52 45 2.5
89 83/84/85 2.5
102 97 2.5/3.0
108 103 2.5/3.0
114 109/110 2.5/3.0
127 121/122 2.5/3.0
133 127/128 2.5/3.0
140 134/135/136 2.5/3.0
152 146/147 2.5/3.0
159 152/153 2.5/3.0





Material for each part :



1. Bearing Housing: Carbon steel SPHC from Baosteel Group

2. Inner Sealing Ring: Nylon PA6

3. Male/Female Labyrinth Seal: POM

4. Cover Cap: Carbon Steel SPCC

5. Protective Shield: Nylon PA6



Product (TK Series Bearing Housing and Seals):

Our roller bearing housing and the relative seals have the advange of high precision, good gloss,

without stretching scars or burrs. Steel materials are from Shanghai Baosteel Group, which is the best steel

maker in China.

Belt Conveyor Idler Roller Housing TK6204-133 Pressed Bearing Cap 0



Factory Show:



Our factory are professional in manufacturing & exporting bearing housing and seals for more than 15 years,

and is approved by ISO9001-2008 quality management system. We have 4 advanced production lines which

make us the largest and most professional bearing housing maker in China.

Belt Conveyor Idler Roller Housing TK6204-133 Pressed Bearing Cap 1



Packing:



Usually, our bearing housing and seals are packed in wooden case with waterproof paper inside. Of course,

we could also packed the items as requested.

Belt Conveyor Idler Roller Housing TK6204-133 Pressed Bearing Cap 2





Customer Visiting:



Our business has been extended to over 30 countries over the world such as Russia, USA, Netherlands,

Chile, Mexico, Colombia, Thailand, Indonesia.,etc.

Belt Conveyor Idler Roller Housing TK6204-133 Pressed Bearing Cap 3

Welcome to visit our factory, and we promise to provide you with our best products and services.





Advantages for our bearing housing:



1. Material:Our raw material is SPHC from Shanghai BaoSteel Company, its

precision tolerance reaches M7.

2. Inner sealing and protective is made from PA6.

It has strong wear and abrasion resistance and high lubricity

3. Female and male labyrinth are made from POM.

They have strong wear and abrasion resistance ,high lubricity and high strength.

4. The material of cover cap is SPCC.

Its yield strength and tensile strength is excellent.
