Parts, Accessories, and Ancillary Components of Conveyor Rollers and Idlers

Conveyor rollers and idlers are essential components of belt conveyor systems, providing support, alignment, and motion control for the belt and transported materials. To ensure proper function, a range of parts, accessories, and ancillary components work in tandem with these rollers and idlers.

1. Core Parts of Conveyor Rollers and Idlers

These are the primary elements that make up a roller or idler assembly:

• Roller Shell (Tube):
  Cylindrical body that comes in various diameters and materials (typically steel or HDPE). It rotates with the belt and supports the load.

• Shaft:
  A stationary rod running through the roller, usually made of precision-machined steel. It provides axial support and connects to the frame.

• Bearing:
  Located inside the ends of the roller shell, allowing it to rotate smoothly around the stationary shaft.

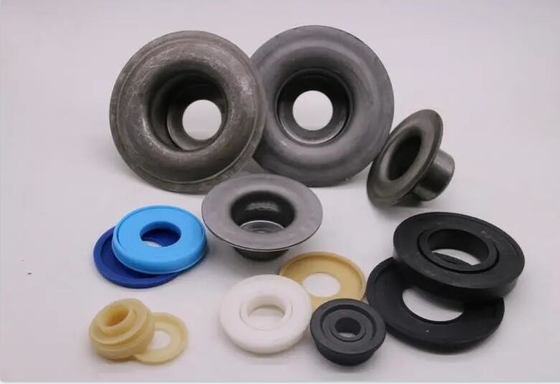

• Bearing Housing:
  A protective enclosure that holds the bearing in position and ensures correct alignment.

• Seals:
  Critical to protecting the internal bearing assembly from dust, water, and other contaminants. Common types include labyrinth and contact seals.

2. Accessories for Conveyor Rollers and Idlers

These items enhance performance, ease installation, and increase durability:

• Brackets & Mounting Clamps:
  Used to attach rollers and idlers to the conveyor frame securely. Designed for easy installation and alignment.

• Spacer Rings:
  Keep the roller components properly aligned on the shaft and maintain axial spacing.

• Locking Bushings / Locking Collars:
  Prevent movement between the shaft and roller tube, ensuring secure operation even under high loads.

• End Caps / Protective Covers:
  Shield the bearing and seal area, offering extra protection from extreme environments.

• Rubber Lagging or Coatings (optional):
  Applied to rollers for better belt traction or wear resistance in abrasive applications.

3. Ancillary Components

These support the function and longevity of conveyor rollers and idlers:

• Idler Frames / Brackets:
  Structural elements that hold multiple rollers in place (e.g., 2-roll or 3-roll troughing sets). They define the troughing angle and alignment of the system.

• Guide Rollers / Side Idlers:
  Prevent belt misalignment by guiding the belt back to center. Commonly used on both carry and return sides.

• Impact Beds / Impact Idlers:
  Installed at loading zones to absorb shock and protect the belt from damage during material loading.

• Return Rollers:
  Located on the underside of the conveyor, supporting the empty return belt.

• Training Idlers / Self-aligning Idlers:
  Automatically adjust their angle to correct belt tracking issues and maintain belt alignment.

• Lubrication Systems (manual or sealed-for-life):
  Maintain proper bearing lubrication to ensure long service life and reduced maintenance.

4. Optional Add-ons for Harsh Environments

• Corrosion-Resistant Coatings or Materials (e.g., stainless steel, HDPE):
  Used in food, chemical, or wet applications.

• Dust Covers / Splash Guards:
  Extra protection for rollers in extremely dusty or wet conditions.

• Noise-Reducing Sleeves:
  Polyurethane or rubber sleeves placed on rollers to minimize noise in sensitive environments.

Importance in Conveyor System Performance

The right combination of parts and accessories ensures:

• Extended roller and belt life.

• Smooth and stable belt operation.

• Reduced downtime and maintenance.

• Enhanced safety and system reliability.
