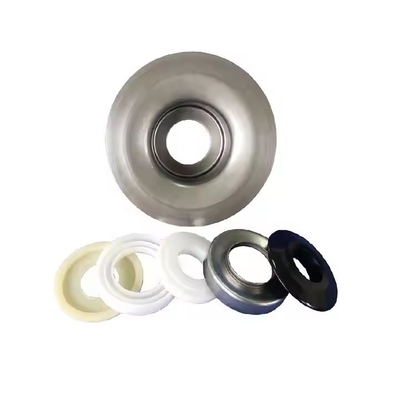

Bearing Housings and Seals for Troughing Rollers and Carrying Idlers

Bearing Housings and Seals for Troughing Rollers and Carrying Idlers – Description

Overview:
Bearing housings and seals are critical components in the design and operation of troughing rollers and carrying idlers used in conveyor systems. These parts ensure the smooth and efficient rotation of the rollers while protecting internal components from contamination and wear, thereby extending the service life of the equipment.

1. Bearing Housings

Definition:
Bearing housings are metal casings that support and enclose the bearings used in the rollers. They maintain the correct alignment and provide structural integrity under dynamic loads.

Key Features:

• Material: Typically made from pressed steel or cast iron for durability and resistance to deformation.

• Design Types:

  • Integral Housings: Where the bearing and housing are combined in one unit.

  • Split Housings: Allow easier maintenance and replacement.

• Mounting: Designed for easy attachment to the idler frame or shaft.

• Alignment: Helps maintain proper alignment of the roller shaft with the conveyor belt.

Function:

• Houses and supports the bearing securely.

• Maintains alignment under load.

• Protects the bearing from external shocks and vibration.

2. Seals

Definition:
Seals are protective components placed at the ends of the bearing housing to prevent the ingress of contaminants (dust, water, chemicals) and to retain lubricant within the bearing.

Types of Seals:

• Labyrinth Seals: Use a maze-like path to block contaminants.

• Rubber Contact Seals: Provide a tight seal via direct contact.

• Non-contact Seals: Prevent friction but may offer less protection in harsh environments.

Key Features:

• Multi-stage sealing: Often includes multiple sealing elements for superior protection.

• Dust & Water Resistance: Designed to perform in harsh, dirty, and wet environments.

• Low Maintenance: Durable materials reduce the need for frequent replacement.

Function:

• Protects bearings from dust, moisture, and other contaminants.

• Retains lubrication to reduce friction and wear.

• Enhances the overall life and reliability of the roller assembly.

Importance in Conveyor Systems

Bearing housings and seals are vital to:

• Minimizing maintenance and downtime.

• Ensuring smooth belt operation.

• Prolonging the lifespan of idlers and rollers.

• Reducing energy consumption due to lower friction.

They are especially critical in bulk material handling systems such as mining, cement, coal, and aggregate industries, where conveyor components operate under continuous and harsh environmental conditions.
