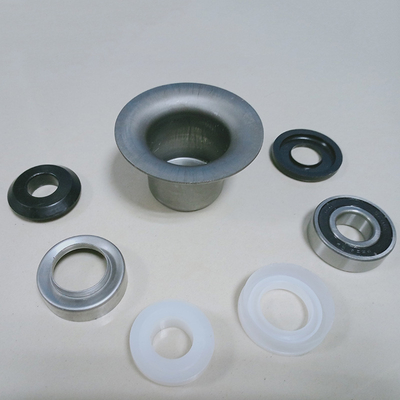

Steel Bearing Housings and Seals for Impact Rollers and Guide Idlers

Steel Bearing Housings and Seals for Impact Rollers and Guide Idlers

Steel bearing housings and seals are critical components in the design and function of impact rollers and guide idlers used in conveyor systems, particularly in mining, quarrying, bulk handling, and heavy-duty industrial applications. Their primary function is to house and protect the bearings that allow rollers to rotate smoothly under load, ensuring the longevity and reliability of the entire conveyor assembly.

1. Steel Bearing Housings

These are robust casings made from high-quality steel, designed to:

• Encapsulate and support bearings: They hold the roller shaft in place while allowing free rotation under load.

• Provide structural integrity: Steel offers high strength, impact resistance, and durability in harsh environments.

• Facilitate mounting: Housings are often welded or bolted to the roller shell, aligning precisely for effective load distribution.

• Enhance heat dissipation: Steel’s thermal conductivity helps prevent bearing overheating under heavy loads.

2. Sealing Systems

Seals play a crucial role in protecting the bearings from environmental contamination. Key features include:

• Multi-lip or labyrinth seals: These prevent the ingress of dust, water, and other contaminants, crucial in dirty and wet environments.

• Grease retention: Seals help retain lubrication, reducing friction and wear, and extending maintenance intervals.

• Corrosion resistance: Sealing systems are often designed to withstand chemicals and moisture, preventing rust and degradation.

Application-Specific Functions

• Impact Rollers: Positioned at loading zones, these rollers absorb the shock of falling material. The bearing housings and seals must withstand high dynamic loads and impacts.

• Guide Idlers: These help maintain belt alignment. Their bearing housings must resist side loading and rotational stresses, with seals designed for long-term, low-maintenance operation.

Benefits

• Increased bearing life and reduced downtime

• Enhanced protection against dust, water, and impact

• Improved conveyor reliability and efficiency

• Reduced total cost of ownership due to less frequent maintenance and replacements
