4mm Thickness TKⅡ6305 Round Edge Bearing Housing For Conveyor Roller
Basic Properties
Trading Properties
| Type: | Stamping Bearing Housing | Applicable Industries: | Building Material Shops, Energy & Mining |
|---|---|---|---|
| Service: | OEM Customized Services | ||
| Highlight | 4mm thick TKⅡ6305 bearing housing,round edge bearing housing for conveyor,ball bearing housing with warranty |
||

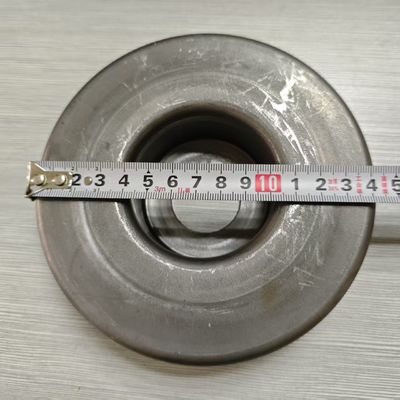

4mm Thickness TKⅡ6305 Round Edge Bearing Housing For Conveyor Roller
1. Bearing: 6305
2. Bearing seat diameter: 62 mm
3. Hole diameter: 35 mm
4. Deepness: 36.5 mm
5. Thickness: 4.0 mm
6. Fold back height: 15mm
Product (TKⅡ Series Bearing Housing and Seals): Our punch press bearing housing and the relative seals have the advantage of high precision, good gloss, without stretching scars or burrs. Steel materials are from Shanghai Baosteel Group, which is the best steel maker in China, so quality is guaranteed.
TKⅡ Bearing Housing Specification
| TKII Bearing Housings | ||||||||
| Unit: mm | ||||||||
| Bearing | Shaft Diameter | Pipe O.D. | Bearing Housing O.D. | Upper Bore Diameter | Bottom Bore Diameter | Bearing O.D. | Depth | Thickness |
| 6305 | 25 | 89 | 83/84/85 | 62 | 30 | 62 | 35 | 3.0 |
| 102 | 97 | 3.0 | ||||||
| 108 | 103 | 3.0 | ||||||
| 114 | 109/110/111 | 3.0 | ||||||
| 127 | 121/122 | 3.0 | ||||||
| 133 | 127/128 | 3.0/3.5 | ||||||
| 140 | 134/135/136 | 3.0/3.5 | ||||||
| 152 | 146/147 | 3.0/3.5 | ||||||
| 159 | 153 | 3.0/3.5/4.0 | ||||||
| 165 | 160 | 3.0/3.5/4.0 | ||||||
| 168 | 161 | 3.0/3.5/4.0 | ||||||
| 176 | 170 | 3.0/3.5/4.0 | ||||||
| 178 | 172 | 3.0/3.5/4.0 | ||||||
| 194 | 188 | 3.0/3.5/4.0 | ||||||
Factory Show
Our factory are professional in manufacturing & exporting bearing housing and seals for more than 15 years,
and is approved by ISO9001-2008 quality management system. We have 4 advanced production lines which
make us the largest and most professional bearing housing maker in China.
