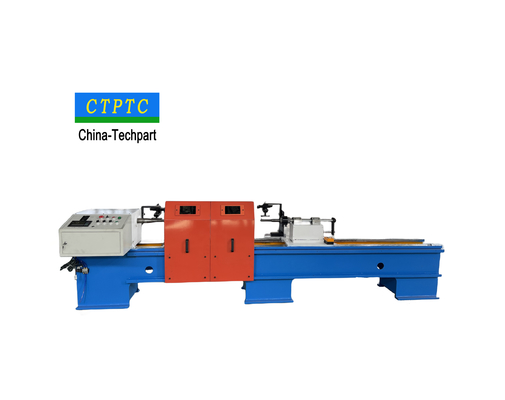

Conveyor Roller Making Machine Conveyor Roller High Speed Automatic Welding Machine

Item

Parameter

Model

TH-220*2200

Center height of machine tool

850mm

Length of welding work piece

200-2200mm

Diameter of welding work piece

Ф76-Ф219mm

Welding Current

60-250A/350A

No-load voltage

45-55V

Nameplate capacity

50KVA

Flow rate of protective gas

10-25L/min

Length of weldable work piece

200-2200mm

Rotation speed of welding

0-10rpm/min

Overall dimensions

3800x500x1150

Weight

1500Kg

The main components:

The entire equipment consists of eight core parts:

1. an automatic feeding mechanism,
2. workpiece positioning and clamping mechanism,
3. servo welding walking mechanism,
4. welding torch adjustment mechanism,
5. welding power supply system,
6. PLC control system,
7. unloading conveyor mechanism,
8. machine frame.

All mechanisms work in coordination to achieve automated and precise control of the entire roller welding process. The compact structural design occupies a small footprint, facilitating workshop layout and production line integration.

Core pruduct advantages:

1. High-speed welding, significant increase in production capacity;

2. Fully automatic operation, reducing reliance on manual labor;

3. Uniform welds, stable and reliable quality control;

4. Adaptable to multiple specifications, with strong versatility;

5. Intelligent control, simple and convenient operation;

6. Durable and stable, suitable for industrial working conditions;

7. Energy-saving and efficient, production cost optimization.
