Mining Belt Conveyor Idler End Caps SPHC Bearing Housing Labyrinth Seal

TK6305-127 Belt Conveyor Idler Conveyor Roller End Caps SPHC Bearing Housing Labyrinth Seal

TK6305-127 Bearing Housing Description

1. Bearing: 6305

2. Bearing seat diameter: 62mm

3. Pipe OD: 127mm

4. Outside flange diameter: 122mm

5. Bore diameter: 40mm

6. Deepness: 45mm

7. Shaft: 25mm

8. Thickness: 3mm

We are factory specializing in Belt Conveyor roller bearing housing the manufacture and export of for more than more than twenty years. We have rich experience in design and, manufacture, our price is very competitive because we are manufacturer, we are the source.

Should any of these items be of interest to you, please let us know, we will be happy to give you details. As a very active manufacturer, we develop new designs nearly every month, if you have interest in it, it's my pleasure to offer news to you regularly.

Our products are widely used in thermal power generation, harbours, cement plants, metallurgy and as well as the light duty conveying devices for industries.

Product Features:

Roller Model: TK, TKII, DTII, TD75

Bearing Type: 6203,6204,6205,6206,6305,6306,6307,6308,

6309, 6310.etc.

Roller Diameter:63,76,89,103,108,114,127,133,159,165,176,

194, 219,etc.

Material:

1. Bearing Housing: Carbon steel SPHC from Baosteel Group

2. Inner Sealing Ring: Nylon PA6

3. Male/Female Labyrinth Seal: POM

4. Cover Cap: Carbon Steel SPCC

5. Protective Shield: Nylon PA6

The wide number of options in the NTN-SNR bearing housing ranges makes it possible to find a solution for every application. We can offer you:

• different types of bearing housings: single- or two-piece housings suitable for single or multiple bearings
• materials suitable for the application: grey cast iron, ductile cast iron, special materials
• wide size range for shaft diameters: from 20mm to 480mm
• 2 types of lubrication: grease or oil
• different types of bearings in bearing housings: spherical roller bearings, deep groove ball bearings, cylindrical roller bearings, special bearings
• a range of sealing systems for a choice that is best suited to the operating environment: double-lip seals, V-ring seals, felt strip seals, labyrinth seals, Taconite seals

The choice of the combination of housing/bearing assembly components will depend on the application, where it is installed, and the operating conditions.

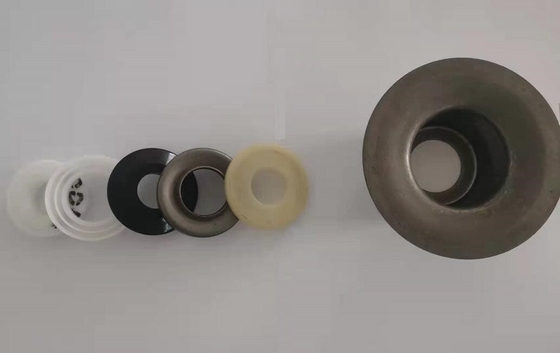

Product (TK Series Bearing Housing and Seals):

Factory Show:

Our factory are professional in manufacturing & exporting bearing housing and seals for more than 15 years, and is approved by ISO9001-2008 quality management system. We have 4 advanced production lines which make us the largest and most professional bearing housing maker in China.

Packing:

Usually, our bearing housing and seals are packed in wooden case with waterproof paper inside. Of course, we could also packed the items as requested.

Application:

Our bearing housing and seals are spare parts of idler roller which is used in mining, port, cement, power plant and any other bulk material handing project.

Customer Visiting:

Our business has been extended to over 30 countries over the world such as Russia, USA, Netherlands, Chile, Mexico, Colombia, Thailand, Indonesia.,etc.

Welcome to visit our factory, and we promise to provide you with our best products and services.

Why choose our bearing housing?

1. Material:Our raw material is SPHC from Shanghai BaoSteel Company, its

precision tolerance reaches M7.

2. Inner sealing and protective is made from PA6.

It has strong wear and abrasion resistance and high lubricity

3. Female and male labyrinth are made from POM.

They have strong wear and abrasion resistance ,high lubricity and high strength.

4. The material of cover cap is SPCC.

Its yield strength and tensile strength is excellent.

Our Service

A. Your logo can be presses onto the goods.

B. The non-standard housing can be produced according to your drawing.

C. The samples and drawings can be offered for your reference.

D. The most competitive price can be offered according to your situation.

E. Your secret documents or information will be a secret to the third one .
