Mechanical 159mm Flange Roller Bearing Housing TK6307-159 with Sealing System

MOQ: 500 sets
Price: 0.4 - 2.5 USD
Standard Packaging: In wooden cases
Delivery Period: 20 days
Payment Method: L/C, D/P, T/T, Western Union, D/A
Supply Capacity: 20000 sets/week
Details Information
Product Description
Detail Information
Place of Origin
Anhui, China
Brand Name
China-Techpart
Certification
ISO9001
Model Number
TK6307-159
Product Name:
Mechanical Idler Roller Bearing Housing
Roller Diameter:
159mm
Bearing Type:
6307 2RS
Housing Diameter:
153mm
Thickness:
4mm
Inner Diameter:
80mm
Height:
61mm
Service:
OEM Customized Services
Highlight:

Mechanical Roller Bearing Housing

,

159mm Flange Bearing Housing

,

TK6307-159

Product Description

Mechanical 159mm Flange Roller Bearing Housing TK6307-159 With Sealing System





Bearing Housing Specification:

TK Bearing Housings
Unit: mm
Bearing Shaft Diameter Pipe O.D. Bearing Housing O.D. Upper Bore Diameter Bottom Bore Diameter Bearing O.D. Depth Thickness
轴承 轴直径 钢管外径 轴承座外径 上孔径 底部孔径 轴承外径 深度 厚度
6307 35 108 103 80.1 55 80 53 4.0
114 109/110 4.0
127 121/122 4.0
133 127/128 4.0
140 134/135/136 4.0
152 146/147 4.0
159 152/153 4.0
165 160 4.0/5.0
168 161 4.0/5.0
176 170 4.0/5.0
178 172 4.0/5.0
194 188 4.0/5.0
219 213 4.0/5.0

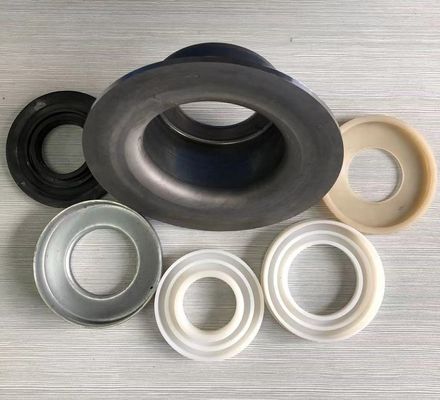

Material:



1*Bearing housing ——SPHC 【100% good quality material】


1* Inner seal ring ——PA6 【High temperature resistance】


1* Female labyrinth seal——POM 【Low water absorbing, high abrasion resistance】


1* Male labyrinth seal——POM 【Low water absorbing, high abrasion resistance】


1* Metal cover seal——SPCC 【High precision】


1* Protective cover——PA6 【High temperature resistance】





Product (TK Series Bearing Housing and Seals):

Our roller bearing housing and the relative seals have the advange of high precision, good gloss, without stretching scars or burrs. We own over 80 punch equipments which tonnage from 63T to 400T. Tolerance of bearing housing accurate to 0.01mm.



Mechanical 159mm Flange Roller Bearing Housing TK6307-159 with Sealing System 0

Factory Show:



Our factory are professional in manufacturing & exporting bearing housing and seals for more than 15 years. We have 4



advanced production lines which make us the largest and most professional bearing housing maker in China.



Mechanical 159mm Flange Roller Bearing Housing TK6307-159 with Sealing System 1





Packing:



Usually, our bearing housing and seals are packed in wooden case with waterproof paper inside. Of course, we could also



packed the items as requested.

Mechanical 159mm Flange Roller Bearing Housing TK6307-159 with Sealing System 2



Customer Visiting:



Our business has been extended to over 30 countries over the world such as Russia, USA, Netherlands, Chile, Mexico,



Colombia, Thailand, Indonesia.,etc.



Mechanical 159mm Flange Roller Bearing Housing TK6307-159 with Sealing System 3



Welcome to visit our factory, and we promise to provide you with our best products and services.



FAQ

What products you can offer? Only bearing housing?

Our main products is standard&customized bearing housing and seals. We can also provide related roller spare parts including



bearings, rubber rings, shaft, pipe, circlip, tools and moulds etc.

What is the MOQ of your products?

No MOQ for standard models.

Can you send me some free samples?

Yes, we can provide some free samples.

I have my own design, could you accept customize?

Yes, we can provide standard or non-standard products. We also have technical team which can provide technical service.



Tags:

Idler Roller Bearing Housing,

Bearing Housing,

Roller Bearing Housing
