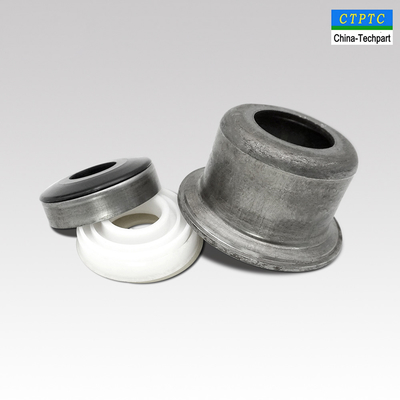

Roller Pressed Steel Bearing Housing TK6205-89 For Mining Industry

Pressed Steel Roller Bearing Housing TK6205-89 For Mining Industry

TK6205-89 Bearing Housing Description

1. Bearing: 6205

2. Bearing seat diameter: 52mm

3. Pipe OD: 89mm

4. Outside flange diameter: 84mm

5. Bore diameter: 40mm

6. Deepness: 45mm

7. Shaft: 25mm

8. Thickness: 3.0mm

Product Features:

Roller Model: TK, TKII, DTII, TD75

Bearing Type: 6203,6204,6205,6206,6305,6306,6307,6308,

6309, 6310.etc.

Roller Diameter:63,76,89,103,108,114,127,133,159,165,176,

194, 219,etc.

Material:

1. Bearing Housing: Carbon steel SPHC from Baosteel Group

2. Inner Sealing Ring: Nylon PA6

3. Male/Female Labyrinth Seal: POM

4. Cover Cap: Carbon Steel SPCC

5. Protective Shield: Nylon PA6

Product (TK Series Bearing Housing and Seals):

Our roller bearing housing and the relative seals have the advange of high precision, good gloss,

without stretching scars or burrs. Steel materials are from Shanghai Baosteel Group, which is the best steel

maker in China.

Factory Show:

Our factory are professional in manufacturing & exporting bearing housing and seals for more than 15 years.

We have 4 advanced production lines which make us the largest and most professional bearing housing maker

in China.

Packing:

Usually, our bearing housing and seals are packed in wooden case with waterproof paper inside. Of course,

we could also packed the items as requested.

Welcome to visit our factory, and we promise to provide you with our best products and services.
