Punching 9mm Stamped Bearing Housing SPHC For Ball Bearing
Basic Properties
Trading Properties
| Material: | SPHC(Pickled Steel) | Applicable Industries: | Building Material Shops, Manufacturing Plant, Mining Etc |
|---|---|---|---|
| Quality: | High Precision With Low Tolerance | Bearing Type: | 6204 |
| Roller Diameter: | 159mm | Flange Diameter: | 153mm |
| Deepness: | 42.5mm | Hole Diameter: | 35mm |
| Highlight | stamped bearing housing SPHC,15Punching 9mm stamped bearing housing,TK6204-159 |
||
Punching Bearing Housing Support Stamped Housing For Ball Bearing

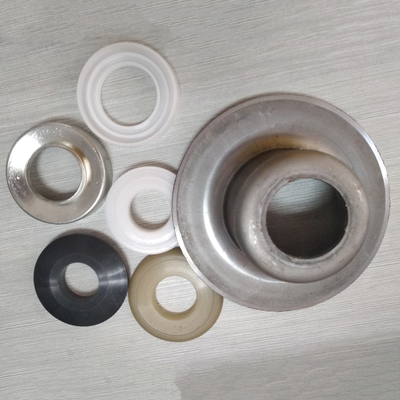

Material for 7 Pieces Set :
Metal Housing: Carbon steel SPHC from Baosteel Group
Inner Sealing Ring: Nylon PA6
Double Labyrinth Seals: POM
Metal Cover: Carbon Steel SPCC
Protect Shell: Nylon PA6
Detailed Parameter :
| Bearing | Pipe Dia (mm) | Shaft (mm) | Flange (mm) | Caliber (mm) | Hole Dia (mm) | Bearing Seat Dia (mm) | Deepness(mm) | Thickness(mm) |
| 6204 | 63 | 20 | 59.5 | 47.1 | 35 | 47 | 42.5 | 2.5 |
| 76 | 72 | 2.5 | ||||||
| 89 | 83/84/85 | 2.5 | ||||||
| 102 | 97 | 2.5/3.0 | ||||||
| 108 | 103 | 2.5/3.0 | ||||||
| 114 | 109/110 | 2.5/3.0 | ||||||
| 127 | 121/122 | 2.5/3.0 | ||||||
| 133 | 127/128 | 2.5/3.0 | ||||||
| 140 | 134/135/136 | 2.5/3.0 | ||||||
| 152 | 146/147 | 2.5/3.0 | ||||||
| 159 | 152/153 | 2.5/3.0 | ||||||
| 6205 | 76 | 25 | 72 | 52.1 | 40 | 52 | 45 | 2.5 |
| 89 | 83/84/85 | 2.5 | ||||||
| 102 | 97 | 2.5/3.0 | ||||||
| 108 | 103 | 2.5/3.0 | ||||||
| 114 | 109/110 | 2.5/3.0 | ||||||
| 127 | 121/122 | 2.5/3.0 | ||||||
| 133 | 127/128 | 2.5/3.0 | ||||||
| 140 | 134/135/136 | 2.5/3.0 | ||||||
| 152 | 146/147 | 2.5/3.0 | ||||||
| 159 | 152/153 | 2.5/3.0 |
About Us :
Our factory are professional in manufacturing & exporting bearing housing and seals for more than 15 years,
and passed ISO9001-2008 certificate. We have 4 advanced production lines, leading us
one of the largest and most professional bearing housing maker in China.
Considerate Service:
We have long-term business cooperation with 30 countries over the world. We can offer sample service to different regions
and samples could reach your hands shortly with different express shipping according to your requirement.
