Flange 108mm Roller Bearing Housing TK6204-108 High Precision

Products

Labyrinth Seals

Mr. kinglin

kinglin@china-techpart.com

86-551-64391510

Contact Now

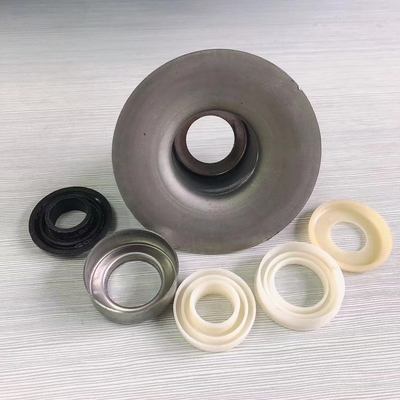

Flange 108mm Roller Bearing Housing TK6204-108 High Precision

MOQ:	500 sets
Price:	0.4 - 2.5 USD
Standard Packaging:	In wooden cases
Delivery Period:	20 days
Payment Method:	L/C, D/P, T/T, Western Union, D/A
Supply Capacity:	20000 sets/week

Details Information

Product Description

Detail Information

Place of Origin

Anhui, China

Brand Name

China-Techpart

Certification

ISO9001

Model Number

TK66204-108

Product Name:

Flange Roller Bearing Housing

Quality:

High Precision And Low Tolerance

Roller Diameter:

108mm

Bearing Type:

6204 2RS/ZZ Bearing

Housing Diameter:

103mm

Thickness:

2.5mm

HS CODE:

8483300090

Sample:

Free Sample Available

Highlight:

Flange Roller Bearing Housing High Precision

108mm Roller Bearing Housing

TK6204-108

Product Description

Flange Roller Bearing Housing TK6204 - 108 High Precision Belt Conveyor Accessory

Bearing Housing Specification

Model	Specification	Flange mm	Bearing seat dia mm	Caliber mm	Hole mm	Deep dia mm	Height mm	Thickness mm
TK	6204-89	84	47	47.1	25	45	47.5	3
TK	6204-108	103	47	47.1	25	45	47.5	3
TK	6204-133	128	47	47.1	25	45	47.5	3
TK	6204-159	153	47	47.1	25	45	48	3
TK	6205-89	84	52	52.1	30	46	48.5	3
TK	6205-108	103	52	52.1	30	46	49	3
TK	6205-133	128	52	52.1	30	46	49	3
TK	6205-159	153	52	52.1	30	46	49	3
TK	6305-108	103	62	62.1	35	49	52	3
TK	6305-133	128	62	62.1	35	49	52	3
TK	6305-159	153	62	62.1	35	49	52	3
TK	6306-108	103	72	72.1	40	51	54	3
TK	6306-133	128	72	72.1	40	51	54	3
TK	6306-159	153	72	72.1	40	51	55	4
TK	6307-133	128	80	80.1	45	53	57	4
TK	6307-159	153	80	80.1	45	53	57	4
TK	6308-133	128	90	90.1	45	55	59	4

Material:

1*Bearing housing ——SPHC 【100% good quality material】
1* Inner seal ring ——PA6 【High temperature resistance】
1* Female labyrinth seal——POM 【Low water absorbing, high abrasion resistance】
1* Male labyrinth seal——POM 【Low water absorbing, high abrasion resistance】
1* Metal cover seal——SPCC 【High precision】
1* Protective cover——PA6 【High temperature resistance】

Product (TK Series Bearing Housing and Seals):

Our roller bearing housing and the relative seals have the advange of high precision, good gloss,

without stretching scars or burrs. Own over 80 punch equipments which tonnage from 63T to 400T.

Tolerance of bearing housing accurate to 0.01mm.

Flange 108mm Roller Bearing Housing TK6204-108 High Precision 0

Factory Show:

Our factory are professional in manufacturing & exporting bearing housing and seals for more than 15 years.

We have 4 advanced production lines which make us the largest and most professional bearing housing maker

in China.

Flange 108mm Roller Bearing Housing TK6204-108 High Precision 1

Packing:

Usually, our bearing housing and seals are packed in wooden case with waterproof paper inside. Of course,

we could also packed the items as requested.

Flange 108mm Roller Bearing Housing TK6204-108 High Precision 2

Customer Visiting:

Our business has been extended to over 30 countries over the world such as Russia, USA, Netherlands,

Chile, Mexico, Colombia, Thailand, Indonesia.,etc.

Flange 108mm Roller Bearing Housing TK6204-108 High Precision 3

Welcome to visit our factory, and we promise to provide you with our best products and services.

Why choose our bearing housing?

1. Material:Our raw material is SPHC from Shanghai BaoSteel Company, its

precision tolerance reaches M7.

2. Inner sealing and protective is made from PA6.

It has strong wear and abrasion resistance and high lubricity

3. Female and male labyrinth are made from POM.

They have strong wear and abrasion resistance ,high lubricity and high strength.

4. The material of cover cap is SPCC.

Its yield strength and tensile strength is excellent.
